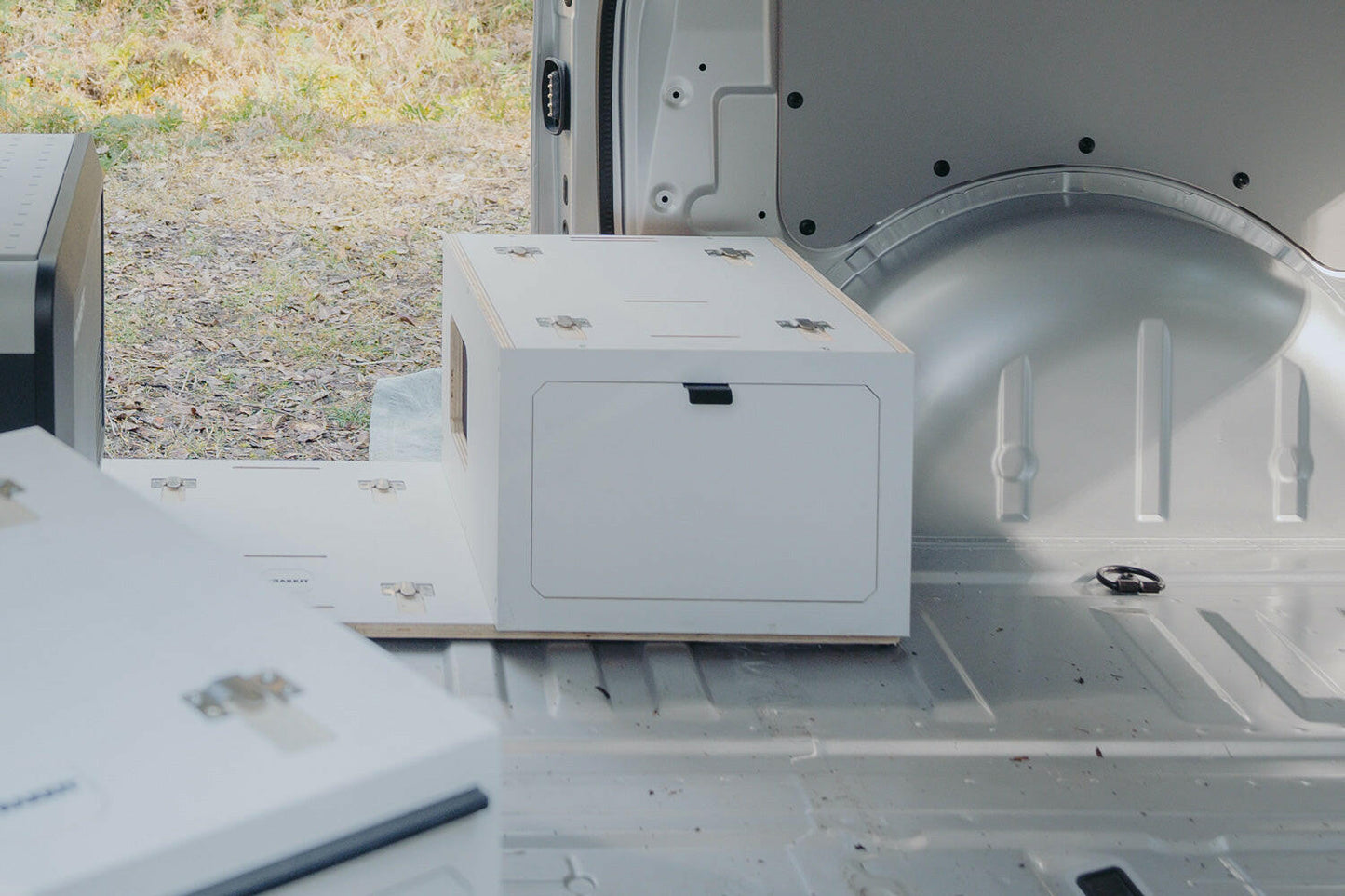

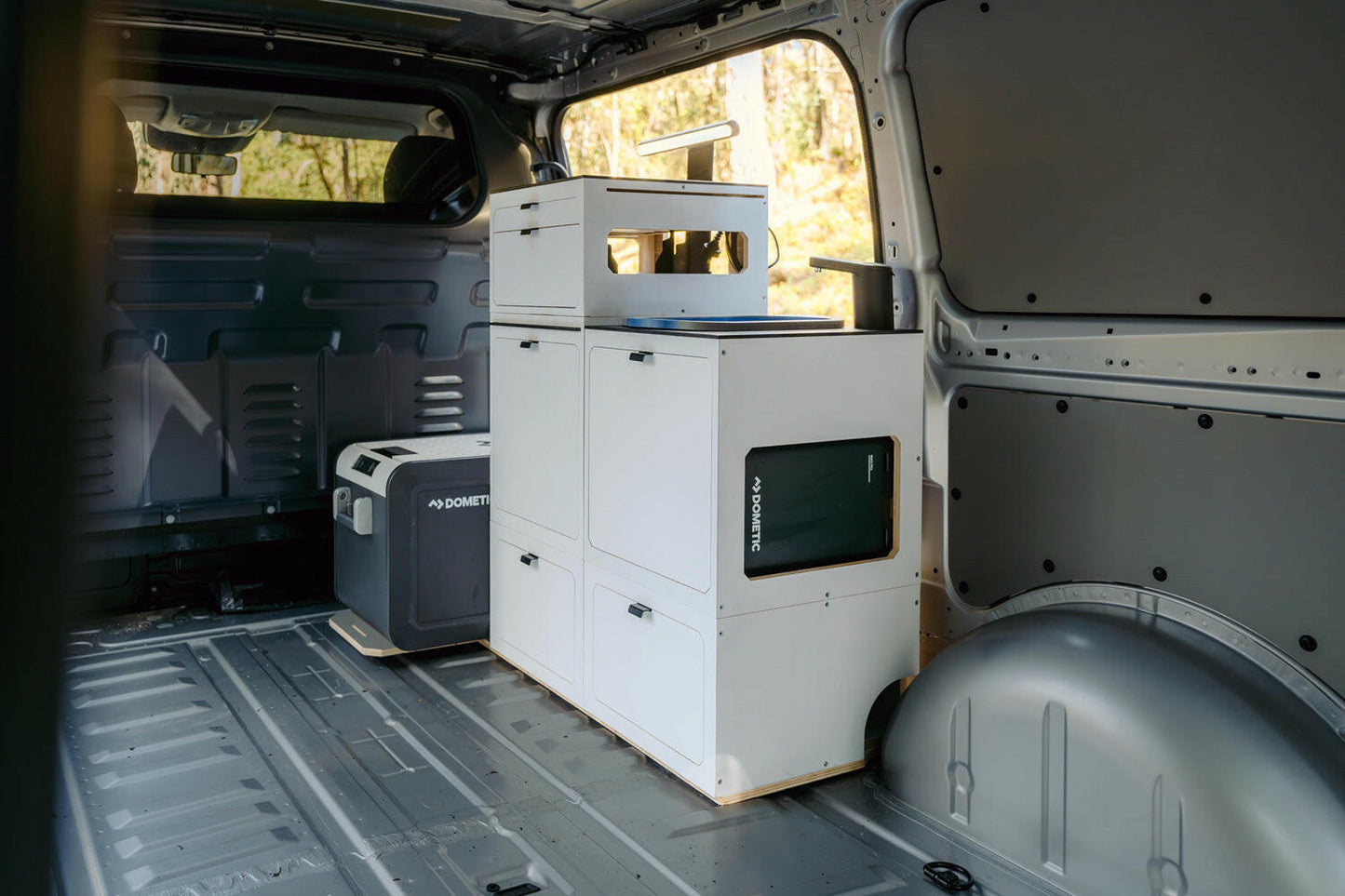

TRAKKIT Storage Module - Wheel Arch

Sale price

$380.00

Regular price $330.00
( / )
Color
White
Grey
Size
  • Interlocking cabinet system

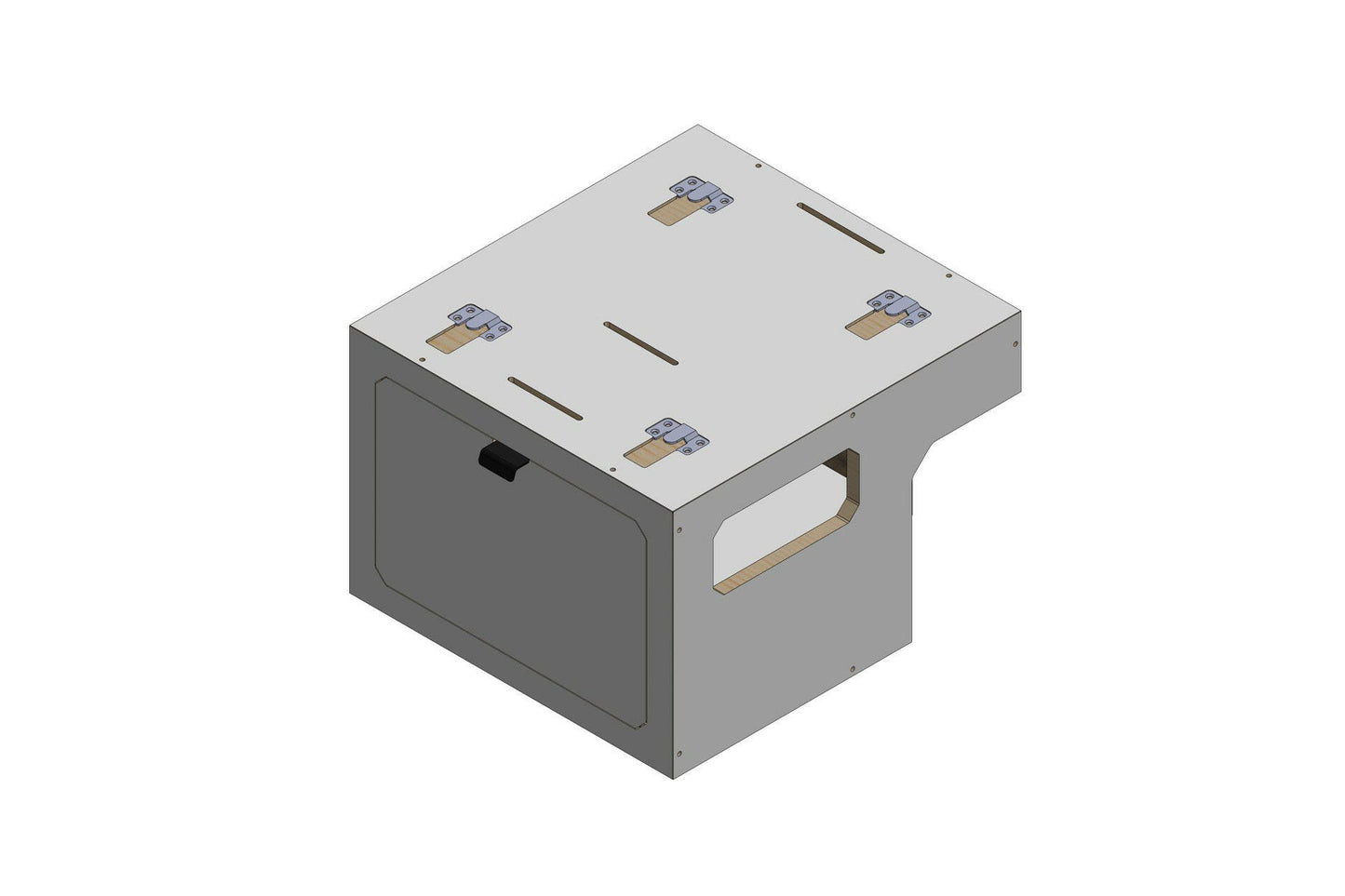

  • Option: wheel arch cutout

Download dimension of storage module here.

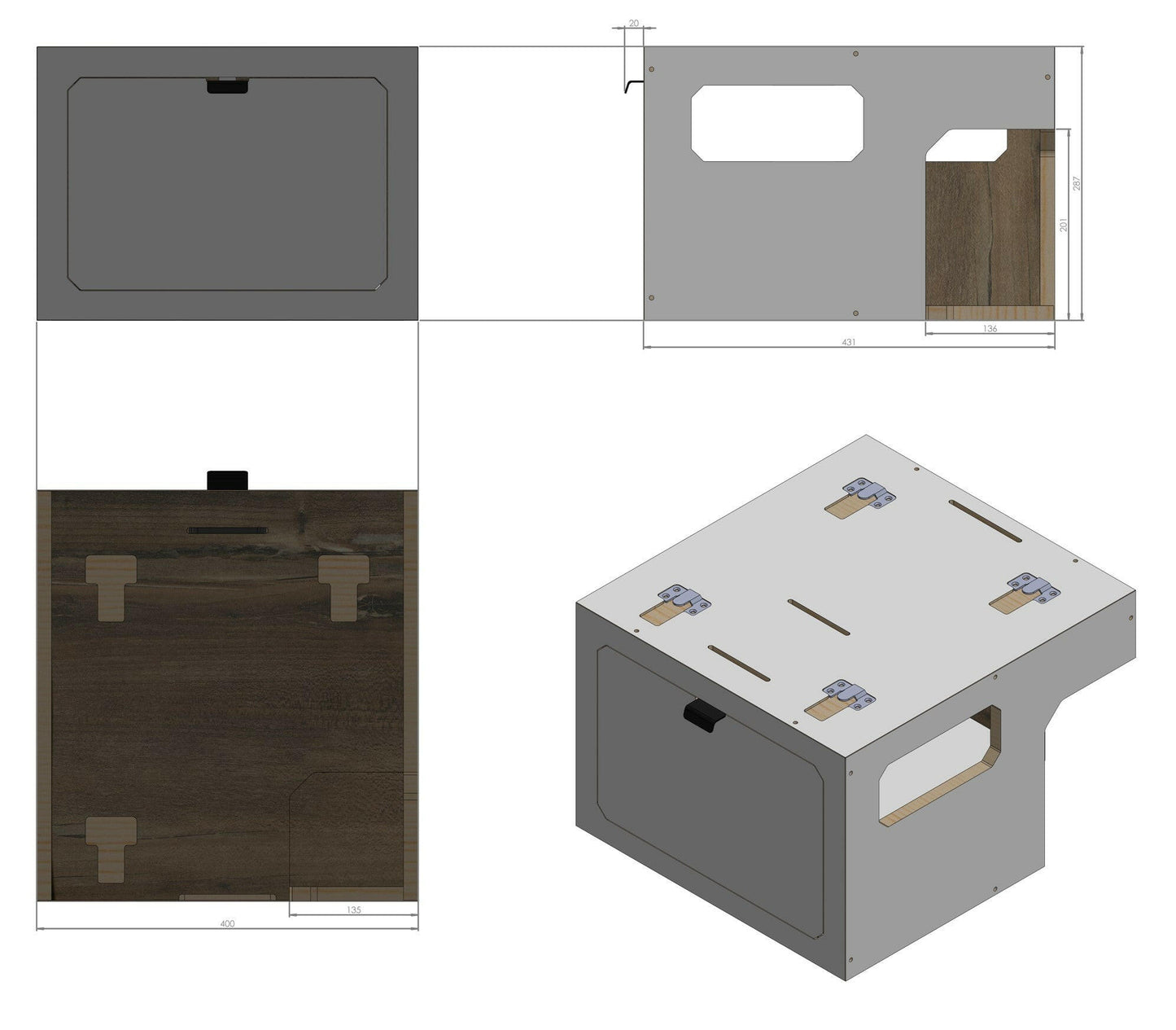

Download dimension of storage module with wheel arch cutout here.

Download dimensions of a fully kitted rear mounted Trakkit system here.

Download dimensions of a fully kitted side mounted Trakkit system here.

Step 1: Initial Module Position - The fitting of the module starts with the module being aligned with the line marking on the mount that allows for easy insertion.

Step 2: Alignment - The user positions the module bracket adjacent to the receiving slot, ensuring that the interlocking components are properly aligned.

Step 3: Sliding - With a controlled force, the user begins to slide the alloy steel interlocking bracket into the receiving slot. The surface of the bracket comes into contact with the edges of the slot, providing guidance during the insertion process.

Step 4: Interlocking Mechanism - As the bracket slides further into the slot, the interlocking mechanism engages that securely fit into corresponding slots on the receiving counterpart.

Step 5: Resistance - At this point, the interlocking components might encounter some resistance, as they snugly fit into their designated positions. The user may need to exert a bit more force to overcome this resistance. User will see the module line up at the face with other modules or the mount.

Step 6: Locking - Once the interlocking components are fully engaged, a noticeable tactile feedback indicates that the bracket is now in its locked position. The locking mechanism prevents accidental disengagement and ensures a secure connection.

Step 7: Securing the Trakkey - Once the composite square key is fully inserted (position marked), it acts as an additional securing element. It prevents any unintended movement or dislodging of the alloy steel interlocking bracket, enhancing the overall stability of the assembly.
